AMPLIFIERS

The perfect system amplifiers for live/touring and installation use. Equipped with exclusive Kling & Freitag module presets, they get the best out of all K&F speaker systems. For impressive sound even in demanding situations.

IX Series

K&F IX Series

The IX Series is the versatile multi‑tool for modern installations, delivering outstanding performance in both high‑Z and low‑Z applications. These compact 1U amplifiers offer up to 6,000 W of power, a fully featured 96 kHz DSP with matrix mixer, FIR‑Drive, and Dante break‑in for maximum flexibility. Innovative technologies such as ecoRAIL, ghostPOWER and powerTANK ensure exceptional efficiency and reliability. Full integration into the SONICUE ecosystem makes the IX Series a smart all‑in‑one solution for scalable, future‑ready installations.

IX60:8
IX30:8
IX60:4
IX30:4
IX15:4
CONTACT K&F

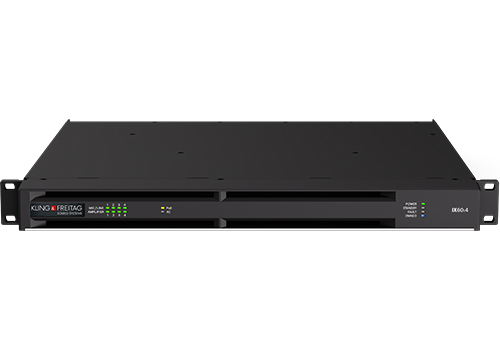

K&F IX60:4

OVERVIEW

  • 4-channel networked DSP amplifiers with 6 kW powerTANK for Hi-Z and Lo-Z operations in 1 U
  • For operating all K&F loudspeakers
  • 4 x high quality microphone/line level inputs with switchable 48V phantom power
  • 8 Dante inputs and 8 Dante output channels: direct outs, mix outs, amp outputs
  • 96 kHz fully featured DSP with input processing, 16x16 (12x12) matrix mixer, dynamics, FIR-Drive, FX
  • ghostPOWER via POE maintains DSP, Dante network and mic/line inputs independent of mains power
  • ecoRAIL technology for significant energy savings
  • State-of-the-art supervision and protection packages derived from flagship IPX series
  • MXE-style TaskEngine for system integration, automation and control

TECHNICAL DATA

DSP
96 kHz internal, Dante 48/96 kHz switchable
Number of amplifier channels
4
Analog Audio Input
2 x 5-pin, male
Network Audio Inputs
8-ch, 48/96 kHz, Dante
Network Audio Outputs
8-ch, 48/96 kHz, Dante
Maximum Output Power1
All channels driven
1,000 Watt (2 Ω)
1,300 Watt (2,7 Ω)
1,500 Watt (4 Ω)
1,200 Watt (8 Ω)
Max. per channel
1,000 Watt (2 Ω)
1,300 Watt (2,7 Ω)
1,800 Watt (4 Ω)
1,200 Watt (8 Ω)
Direct Drive Mode1
All channels driven
1,500 Watt (70 V)
1,500 Watt (100 V)
Max. per channel
1,500 Watt (70 V)
1,800 Watt (100 V)
Dimensions (W x H x D), mm
483 x 44.1 x 447 mm
Weight
8.3 kg
1 Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dB).

DOWNLOADS

Datasheet
